Armored for Victory
Highlights
- The most powerful chip to ever grace our smartphone.
- An unrivaled cooling experience.
- Zero-throttling performance.
- A no-notch display.
- And enough juice to power you through the day.
- Powerful Performance
- True Full Screen
- Real Gaming Controls
- Personalized Gaming Mode
- Top Cooling
- Power To Keep Gaming
Specs

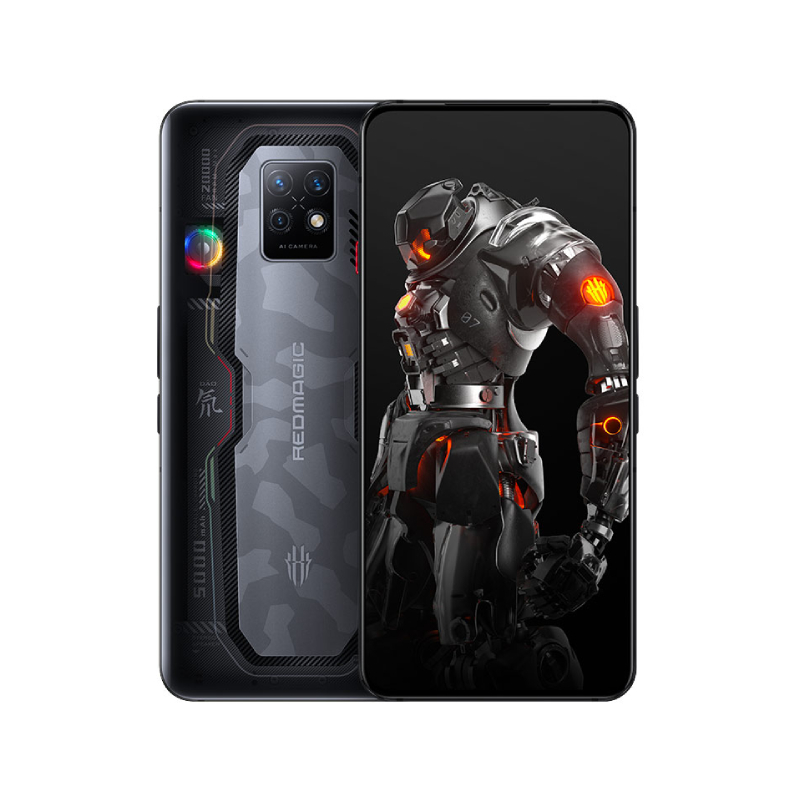

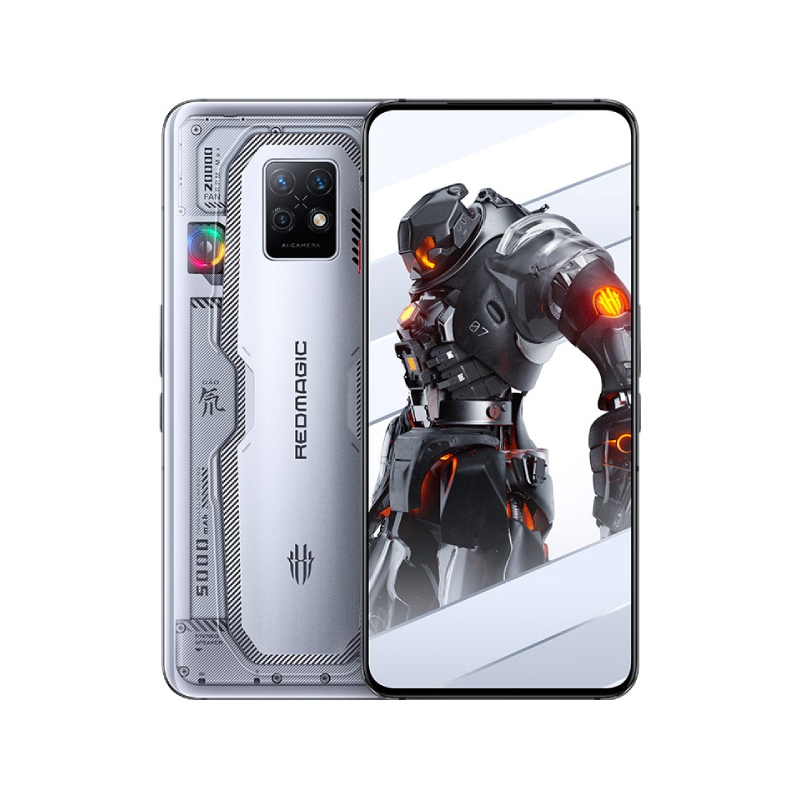

| Basic Parameters | Height: 166.27mm Width: 77.1mm Depth: 9..98mm Weight: 235g Material: Double-sided glass + metal box / metal box + glass / metal synthetic rear cover Color: Obsidian 12+256 / Supernova 18+512 / Mercury 18+512 |
| Display | Size: 6.8 inches FHD+ Refresh Rate: up to 120Hz Touch Sampling Rate: up to 960Hz multi-touch Resolution: 1080×2400 pixels Aspect Ratio: 20:9 Type: AMOLED Brightness: 600 nits max brightness, SGS Certification low blue light for eye comfort Material: Corning® Gorilla® Glass 5 Color Gamut: 100% DCI-P3 Contrast Ratio: 1,000,000:1 |
| Cooling System | Turbo Fan Air Channel with 2 air intakes Air Volume: 0.35 (MIN. 0.28) CFM；11.75 (MIN. 7.52 ) mmH2O Type: Centrifugal fan Number of fan blades: 59 Thickness of fan blades: 0.1mm Tested life: 30,000 hours Speed: 20,000 RPM The other cooling components Material: Aircraft grade aluminum alloy Vapor Chamber High Thermal Conductivity Copper Foil Thermal gel Cooling Graphite Thermal Pad Aviation Grade Aluminum Heat Sink Graphene Composite Phase Change Material |
| Hardware | Qualcomm® Snapdragon™ 8+ Gen 1 CPU Cores: Kryo™ CPU Clock Speed: up to 3.2 GHz GPU: Adreno™ Red Core 1 |
| Capacity* | RAM: 12/18 GB LPDDR5 ROM: 256/512 GB UFS3.1 *Actual memory space is less and varies due to many factors |
| Connectivity | Network SIM: dual nano-SIM SA+NSA: compatible with both standalone and non-standalone modes 2G: GSM 2/3/5/8 3G: WCDMA B1/B2/B4/B5/B8 CDMA/EVDO BC0/BC1 4G: TD-LTE B34/B38/B40/B41 FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19 /B20/B26/B28A/B66 5G NSA: n41/n78//n77/n38 SA: n41/n78/n1/n77（3600M-4100M）/n28A/n3/n7/n8/n20/n5 WiFi: WiFi6 802.11ax ready2x2 802.11ac MU-MIMO with DBS support Bluetooth: Bluetooth 5.2 and Bluetooth Milan compliant BLE long range Positioning: GPS, GLONASS NFC: Yes HDMI：Yes |
| Cameras | Rear Camera Sensors: S5KGW3+HI846+OV02A10 Resolution: 64MP+8MP+2MP Wide Angle: 82°+120°+78° Aperture: F1.79+F2.2+F2.4 Frame Rates and Resolution: 7680×4320@30fps,3840×2160@30fps, 3840×2160@60fps,1920×1080@30fps, 1920×1080@60fps,1280×720@30fps Time-Lapse: Yes Front Camera Megapixels: 16MP Pixel Size: 1.12μm Aperture: 2.0 Video shooting: the rear cameras supports 8K resolution at 30fps, 4K at 60fps/30fps, 1080P at 60fps/30fps, 720P at 30fps; the front camera supports 1080P/720P at 30fps |
| Sensors | Fingerprint, G-sensor, Electronic Compass, Gyroscope, Proximity, Ambient Light Sensor, Sensor hub |
| Operating System | RedMagic OS 5.5 based on Android 12.0 |
| Battery & Quick Charging | Battery: 5000mAh Dual Cell Battery Quick Charging: Supports 65W (65W GaN quick charger in the box) |
| Ports | USB 3.0 Type-C, DP, Dual nano-SIM slot, 3.5mm Audio Jack |
| Audio Supported Format | Playback: WAV, AAC, MP3, AMR, FLAC, OGG, APE Recording: MP3 |
| Video Supported Format | Playback: 3GP, ASF, AVI, FLV, M2TS, MKV, MOV, MP4, MPG, MTSTS, WEBM, WMV, MPEG, M4V Recording: MP4 |
| Image Supported Format | Playback: JPEG, PNG, GIF, BMP, WBMP, HEIC Output: JPEG |
| Special Functions | Shoulder Trigger Buttons: 520Hz touch sampling rate touchpads Game Space Switch: Toggles special game mode on or off. RGB Light: fully customizable lighting effects |
