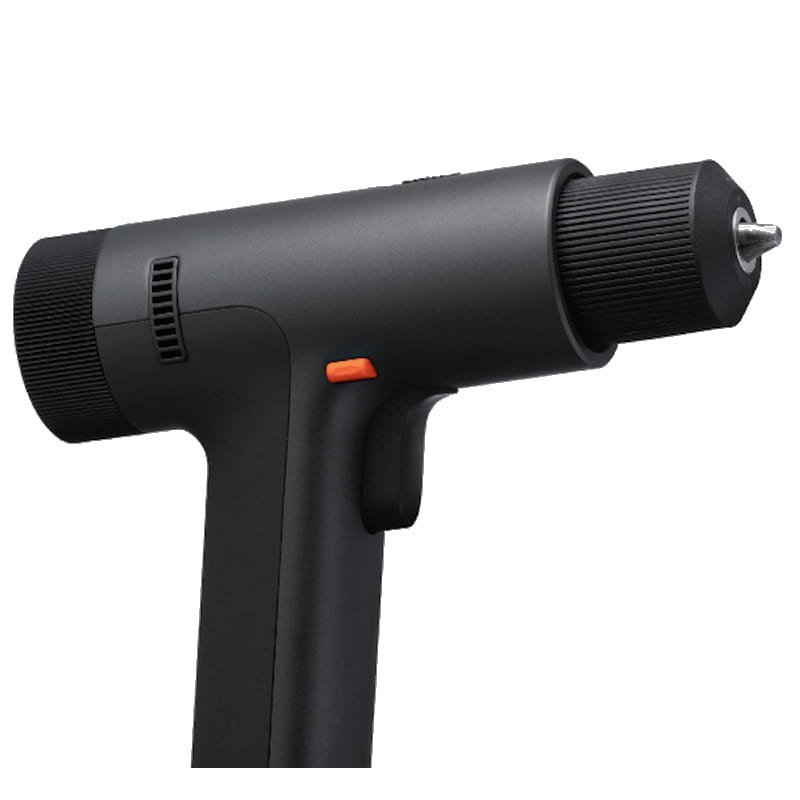

Powerful brushless motor with lithium battery
Highlights
- 30N·m powerful torque
- 30-speed precision control
- 3 operating modes
- Smart Display
Specs
| Specifications | Security torx T9H/T10H/T15H/T20H/T25H Rated voltage 12V⎓ Hex H3/H4/H5/H6 No-load drilling speed 0–1400rpm (electric drill speed) 0–370rpm (screwing speed) Slotted SL4/SL6 Y bit Y1 Charging specifications 5V⎓3A; 9V⎓1.5A Tri-wing 2.3 Charging time 120–180min Square S0/S1 Drill bit type Metal twist drill bit 3/4/5/6 Wood drill bit 4/5/6/7 U bit U2.6 Extension rod 60mm |
| * Not suitable for use on concrete | * The maximum torque error is ±5Nm due to the measurement device used. Torque test method: With the battery fully charged, the function selection button is pushed to enter screwing mode. A torque tester is then used to test the locked-rotor torque at level 30. * No-load speed tolerance is approximately 10%. Speed test method: The fully charged device is run for 2 minutes at no load and the no-load speed is then tested with a speed tester. * Screwing test method: With the device fully charged, the gearbox is adjusted to low speed (screwing mode). In manual “M” mode, the tail torque is adjusted to 10 and an M4 x 25mm self-tapping screw is screwed into the pine board until the battery runs out. *Steel plate drilling test method: With the device fully charged, the gearbox is adjusted to the high-speed setting (drilling mode). In M mode, the tail torque is adjusted to 30 and a hole is drilled into a 6mm-thick steel plate with a 6mm twist drill. *Wooden board drilling test method: With the device fully charged, the gearbox is adjusted to the high-speed setting (drilling mode). In M mode, the tail torque is adjusted to 30 and a 40mm-deep hole is drilled into a white pine board with a 7mm wood bit. *The whole unit compliance test report was issued by Waltek Services Test Group Ltd. in Foshan; Test Report No.: WTF21F3015226G. *The whole unit ROHS test report was issued by EMTEK (Dongguan) Technology Co., Ltd.; Test Report No.: ED201110010C. *The EMC test report was issued by EMTEK (Shenzhen) Co., Ltd.; Test Report No.: ES201110017E.*The environmental reliability test report was issued by Intertek Shenzhen Ltd.; Test Report No.: SZHH01513728. *The battery test report was issued by Precise Testing & Certification (Guangdong) Co., Ltd.; Test Report No.: PTC20110204401S-GB01.The screwdriver bit test report was issued by the National Light Industry Tool Hardware Quality Supervision & Testing Station, Shanghai. Test Report No.: G20201629F. Hardness varies by ±2HRC. * Two extension rod designs are available and will be shipped randomly. * The water-repellent fabric test was conducted by Centre Testing International Co., Ltd. and is waterproof up to class 4–5; Test Report No.: A2210085110101C. |
