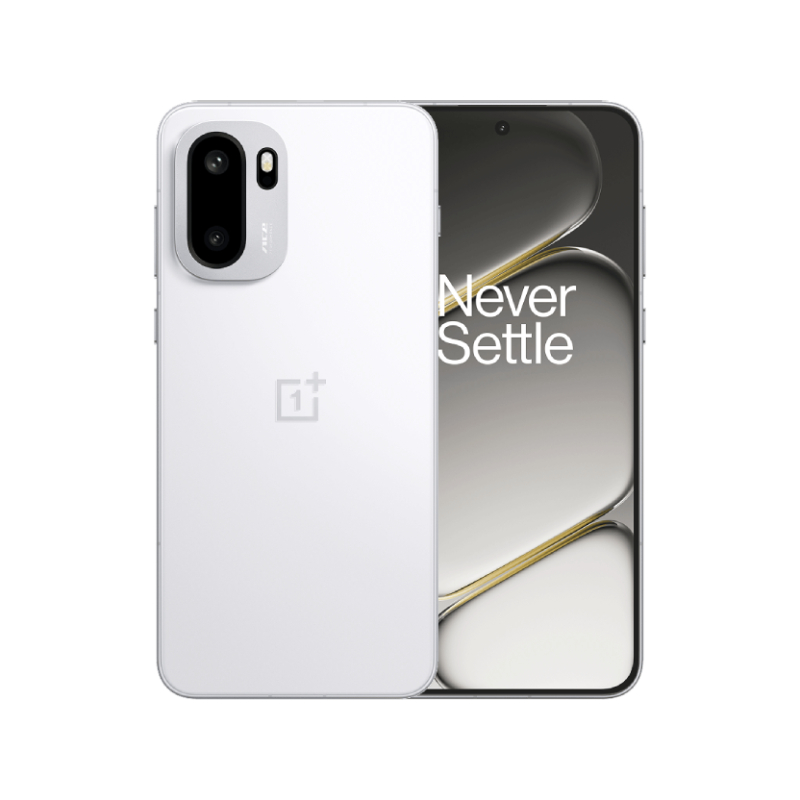

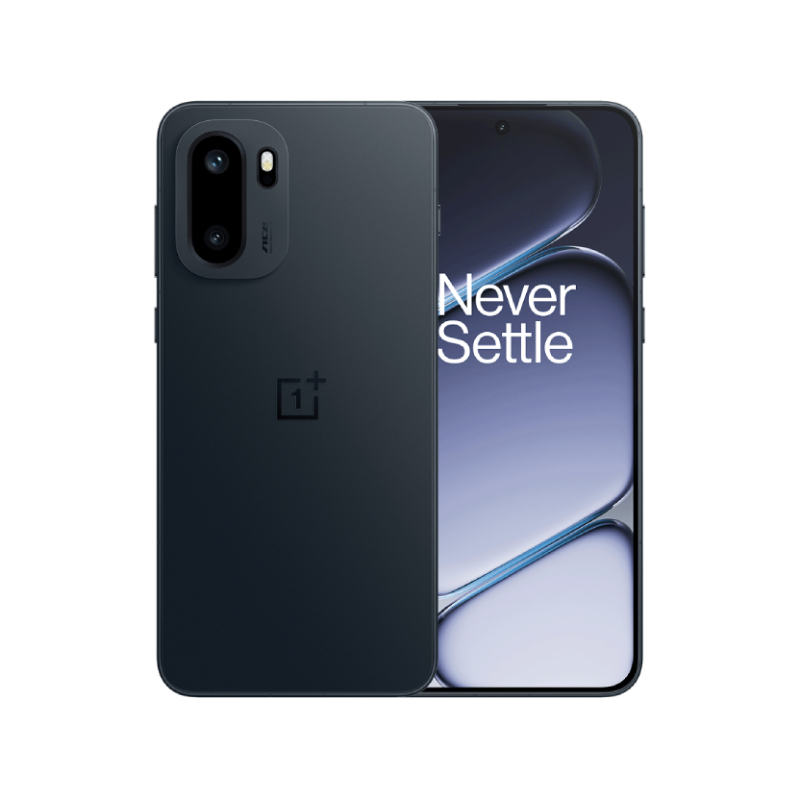

OnePlus Ace 6 PLQ110 Highlights
- Snapdragon 8 Elite processor
- 165 Ultra-high frame rate for gaming
- 165Hz Ultra-high refresh rate eye protecting screen
- 7,800mAh battery with 120W SuperVOOC Flash Charge
- The all-new Glacier Cooling system
OnePlus Ace 6 PLQ110 Specifications
| Dimensions | Length (mm) 163.41 mm Width (mm) 77.04 mm Thickness (mm) 8.30 mm Weight (g) Approximately 213 grams |
| Processor | CPU model Qualcomm Snapdragon® 8 Ultra Mobile Platform CPU manufacturing process 3nm CPU frequency 8 cores GPU model Adreno™ 830@1.1GHz |
| Storage | RAM specifications LPDDR5x ROM specifications UFS 4.1 RAM capacity + ROM capacity 12GB+256GB、12GB+512GB、16GB+256GB、16GB+512GB、16GB+1TB |
| Display | Screen size 6.83 inches Screen ratio 93.6% Screen resolution FHD+ 2800 × 1272 pixels Screen pixel density 450 PPI Screen refresh rate Intelligent switching between 60/90/120/144/165Hz, with support for up to 165Hz (144/165Hz only works in certain scenarios). Screen brightness Global default maximum brightness: 800 nits (typical value) Global peak brightness: 1800 nits (typical value) Screen Color 1.07 billion colors (10-bit) Color gamut Standard mode: 100% DCI-P3 Natural Mode: 100% DCI-P3 Vivid Mode: 100% DCI-P3 Always-on Display (AOD) support Eye protection mode support Dimming PWM + DC-like dimming (brightness ≤ 70 nits: PWM dimming; brightness > 70 nits: DC-like dimming) Screen selling points features Supports low brightness and low flicker eye protection function, without low brightness and low flicker eye protection switch. |
| Battery | Battery capacity 2×3900 mAh/29.33 Wh (typical), equivalent to 7800 mAh battery energy. 2×3810 mAh/28.66 Wh (rated), equivalent to 7620 mAh battery energy. Fast charging Wired fast charging: 120W SuperVOOC Flash Charge, 120W UFCS Fusion Fast Charging Compatibility: 100W and below SuperVOOC Flash Charge, 44W three-way UFCS fast charging, 55W PPS, 18W PD, 18W QC |
| Camera | Rear camera Wide-angle (main camera): 50MP, f/1.8, 24mm equivalent focal length, 6P lens, supports AF autofocus, supports two-axis OIS image stabilization. Ultra-wide-angle camera: 8MP, f/2.2, 16mm equivalent focal length, 5P lens. Zoom mode: Supports up to 20x digital zoom OIS: Wide-angle (main camera) support, dual-axis OIS Phase Detection Autofocus (PDAF): Wide-angle support Rear camera functions: Photos, Videos, Portraits, Night Scene, Panorama, Movies, Slow Motion, Long Exposure, Multi-view Recording, Time-lapse Photography, Cute Camera, High-resolution, AI ID Photo, Professional Mode, Super Text, Scan, Tilt-shift. Rear camera photo formats: JPG (default), PNG, HEIF Rear camera – flash Rear LED monochrome temperature single lamp Front camera Front-facing camera: 16MP, f/2.4, 23mm equivalent focal length, 4P lens Front-facing camera functions: Photos, videos, portraits, night scenes, panoramas, multi-view recording, time-lapse photography, cute stickers, AI ID photos. Front-facing photo format: JPG (default), HEIF Video recording – front camera 1080P 30fps, 720P 30fps Video stabilization supports: 1080P 30fps, 720P 30fps Video recording – Rear camera 4K 120fps，4K 60fps，4K 30fps，1080P 120fps，1080P 60fps，1080P 30fps，720P 60fps，720P 30fps Video stabilization supports: 4K 120fps, 4K 60fps, 4K 30fps, 1080P 120fps, 1080P 60fps, 1080P 30fps, 720P 480fps, 720P 240fps Video slow motion support: 4K 120fps, 1080P 240fps, 1080P 120fps, 720P 480fps, 720P 240fps Movie mode supported: Yes Time-lapse photography supported: 4K@30fps Rear camera shooting mode Photos, videos, portraits, night scenes, panoramas, movies, slow motion, long exposure, multi-view recording, time-lapse photography, cute snapshots, high-resolution images, AI ID photos, professional mode, super text, scan, tilt-shift. |
| Network & Connectivity | LTE antenna and radio frequency technology LTE antenna and RF technology: 4×4 MIMO, frequency bands 1/3/4/38/40/41/42/43/48/66 4×4 MIMO Other frequency bands: 2×2 MIMO Supports 4×4 MIMO antenna technology | HPUE | HO RxD Network frequency band 2G GSM： 850/900/1800MHz 3G WCDMA: Frequency bands 1/4/5/6/8/19 4G LTE FDD: Bands 1/3/4/5/8/18/19/26/28A/66 4G LTE TDD: Frequency bands 34/38/39/40/41/42/43/48 5G NR: n1/n3/n5/n8/n18/n26/n28A/n38/n40/n41/n48/n66/n77/n78 Dual SIM Card User Guide 1. The full network compatible version of the China Mobile SIM card can be used in combination with China Unicom SIM cards, China Telecom SIM cards, and China Broadcasting Network SIM cards. Both the primary and secondary SIM cards support 5G, and any one of the cards can be used as a data card. 2. When inserting two China Telecom SIM cards, the non-data SIM card must have VoLTE service activated and VoLTE HD calling enabled. Additionally, the operator’s network must support 4G VoLTE service for the two China Telecom SIM cards to be used. Otherwise, the two China Telecom SIM cards cannot be used simultaneously. Note: Actual network and frequency band usage depends on local operator deployment. WLAN function Supports Wi-Fi 7 (802.11be) Supports Wi-Fi 6 (802.11ax) Supports Wi-Fi 5 (802.11 ac) Supports 802.11 a/b/g/n Supports Wi-Fi Display Supports network overlay: Wi-Fi 2.4GHz 2×2 + Wi-Fi 5GHz 2×2 concurrent. Supports WLAN network sharing Supports Wi-Fi 5GHz 160MHz Supports 2×2 MIMO Satellite Positioning Dual-frequency support: BeiDou (B1I+B1C+B2a), GPS (L1+L5), GLONASS (G1), Galileo (E1+E5a), QZSS (L1+L5), NavIC (L5) Other positioning Supports A-GPS assisted positioning, Wi-Fi positioning, and cellular network positioning. Bluetooth version Bluetooth 5.4, Bluetooth Low Energy Bluetooth audio specifications: SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, LHDC 5.0 NFC function Supports reading and writing NFC cards (13.56MHz NFC cards). Supports NFC-SIM (SIM1 card slot only) Supports HCE payment Support eSE VoLTE support Video Call support |
| Audio | Number of speakers: 2 Lower speaker: 1510 super linear speaker (two racetrack-shaped openings on the bottom side of the device, to the right of the Type-C port) Upper speaker: 1012 super linear speaker (opening at the top of the device + long strip micro-slit in the middle of the screen) Number of microphones 2 Sound effects OReality Audio |
| Sensors | Proximity sensor, ambient light sensor, color temperature sensor, electronic compass, accelerometer, gyroscope, in-display ultrasonic fingerprint sensor, infrared remote control. |
| Vibration Motor | X-axis linear motor |
| Dust and Water Resistance | IP66 IP68 IP69 IP69K |
| Port | Charging port USB Type-C Data Interface USB Type-C Transmission Protocol USB 2.0 SIM card type Nano-SIM card |
