OnePlus Ace 2 (11R) PHK110 Dual SIM 5G

  • Snapdragon® 8+ flagship platform
  • 16GB large memory
  • Super picture quality for games
  • 1.5K Lingxi touch screen
  • 5177mm² super large liquid cooling
OnePlus Ace 2 (11R) PHK110 Dual SIM 5G

This product is currently out of stock and unavailable.

Performance freedom – New benchmark for performance mobile phones


  • Snapdragon® 8+ flagship platform
  • 16GB large memory
  • Super picture quality for games
  • 1.5K Lingxi touch screen
  • 5177mm² super large liquid cooling

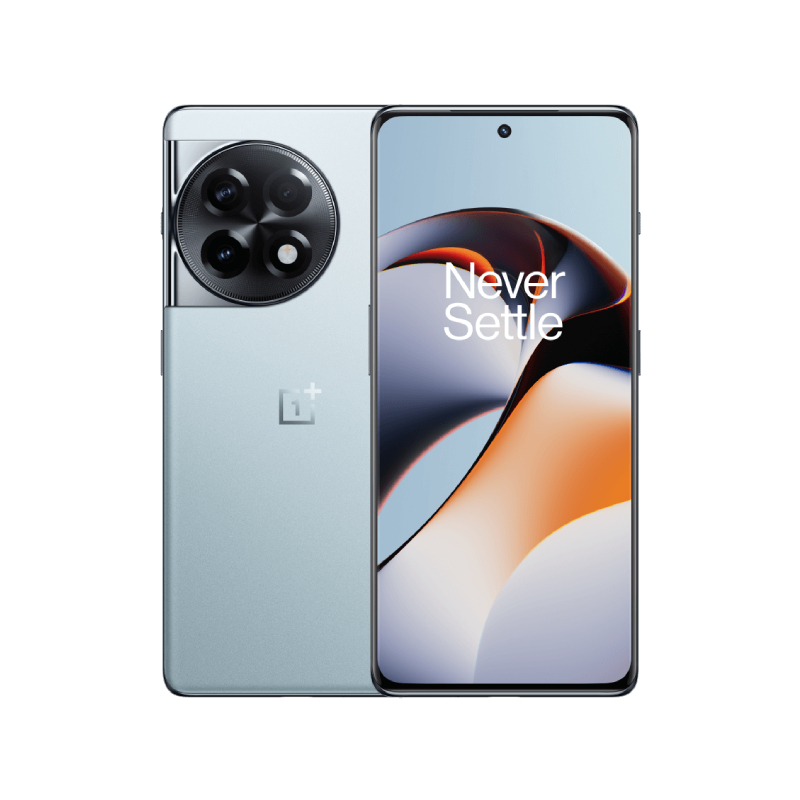

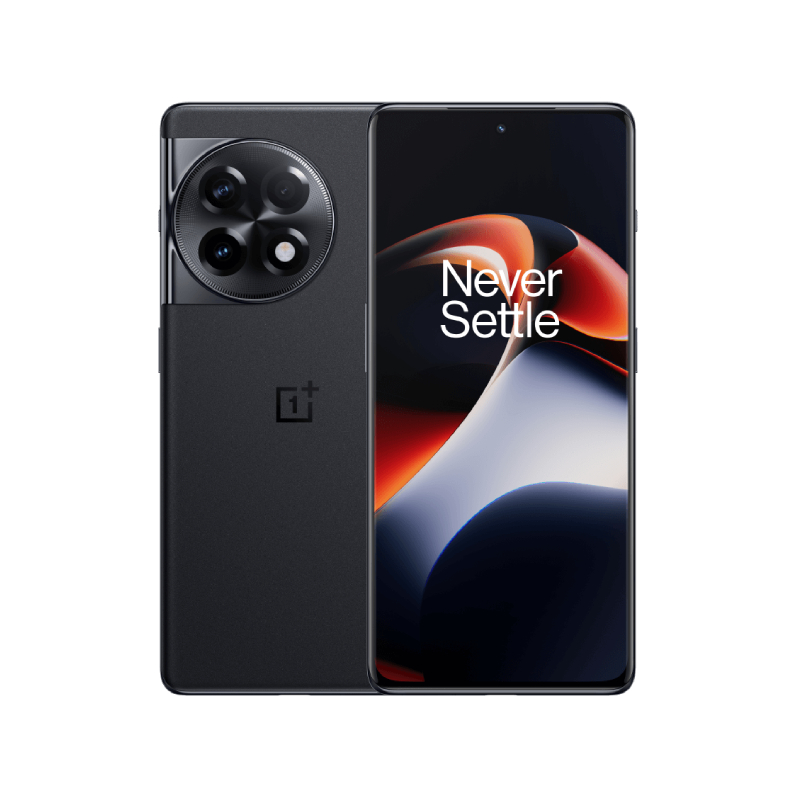

Color Options Glacier blue, Vast black
Dimension Height: 163.4mm
Width: 74.3mm
Thickness: 8.7mm
Weight: about 204g
Processor First generation Snapdragon® 8+ mobile platform
SoC process: TSMC 4nm process
CPU frequency: eight-core processor, maximum frequency 3.2GHz
GPU: Adreno™ 730 GPU graphics processor
Storage Running memory (RAM): 12GB/16GB LPDDR5X
Body storage (ROM): 256GB/512GB UFS 3.1
Configuration combination: 12GB+256GB/16GB+256GB/16GB+512GB
Display Dimensions: 6.74 inches
Screen type: 3D AMOLED flexible screen
Screen-to-body ratio: 93.90%
Resolution: 2772×1240
Pixel density: 450 PPI
Contrast: 2000000:1
Refresh rate: up to 120Hz (120Hz/90Hz/60Hz/45Hz/40Hz adaptive)
Brightness: Global default maximum brightness is 500nit, global excitation maximum brightness is 1100nit, local peak maximum brightness is 1450nit
Screen colors: 1.07 billion colors
Color gamut: Vivid mode 100% DCI-P3, Natural mode 100% sRGB
AOD support:Supported
Functions: 1440Hz high-frequency PWM dimming, eye protection mode, screen color mode, automatic brightness adjustment, manual brightness adjustment, screen color temperature adjustment, ultra-clear image quality enhancement, video color enhancement, HDR video highlight mode, dark mode, screen refresh rate switching
Batteries and charging Wired fast charging: 100W super flash charging
Battery: non-removable, dual-cell 5000mAh
SUPERVOOC S full-link power management chip
Cameras Post:
Main camera: 50 million pixels, IMX890, 1/1.56″, 1μm, 6P lens, f/1.8, supports OIS, supports AF, FOV 84.4°, equivalent focal length 24mm, effective focal length 5.59mm
Ultra-wide-angle camera: 8 million pixels, OV08D10, 1/4″, 1.12μm, 5P lens, f/2.2, FOV 120°, equivalent focal length 16mm, effective focal length 1.65mm
Macro camera: 2 million pixels, OV02B10, 1/5″, 1.75μm, 3P lens, f/2.4, FOV 89°, equivalent focal length 22mm, effective focal length 1.77mm
Optical zoom: Does not support optical zoom, supports 10x digital zoom
OIS: main camera support
Flick Sensor: Support
PDAF: support
Flash: Rear-mounted LED single color temperature single light

Rear video:
Rear 4K@60fps/30fps, 1080P@60fps/30fps, 720P@60fps/30fps
Video anti-shake supports EIS/OIS, 1080P@60fps
Video slow motion supports 1080P@240fps, 720P@480fps
Video zoom shooting supports 4K@60fps/30fps, 1080P@60fps/30fps, 720P@60fps/30fps
Movie mode supports 1080P@30fps
Time-lapse photography supports 1080P@30fps, 4k@30fps
Multi-view recording supports 1080P@30fps

16 million pixels, f/2.4
Front-facing video: Front-facing video supports 1080P/720P@30fps, default is 1080P@30fps (beautification is enabled by default)
Front functions: face unlock, HDR, flash, beauty

Image function:
Night scene mode, portrait mode, professional mode, movie mode, panorama mode, macro mode, time-lapse photography mode, multi-view video mode, tilt-shift mode, scan, super text, beauty, slow motion, long exposure, cute Take, AI ID photo, filter, night scene video, video HDR, video beauty
Network and connections LTE/LTE-A: 4×4 MIMO; Band1/3/38/40/41 4×4 MIMO; other Bands: 2×2 MIMO

Frequency band:
2G: GSM 850/900/1800MHz
2G: CDMA BC0 (800MHz)
3G: UMTS(WCDMA) bands 1/4/5/8
4G: TD-LTE bands 34/38/39/40/41
4G: FDD-LTE bands 1/3/4/5/8/28A
5G: NR:n1/n3/n5/n8/n28A/n40/n41/n77/n78

WLAN protocol: supports Wi-Fi 6, Wi-Fi 5, 802.11a/b/g/n/
WLAN frequency: WLAN 2.4G/WLAN 5.1G/WLAN 5.8G
Support network overlay: Wi-Fi 2.4GHz 2×2 + Wi-Fi 5GHz 2×2 concurrent

Satellite positioning: Support Beidou: B1I+B1C+B2a, GPS: L1+L5, GLONASS: G1, Galileo: E1+E5a, QZSS: L1+L5
Others: Support A-GPS assisted positioning; support wireless LAN and cellular network positioning
Bluetooth: Bluetooth 5.3, Bluetooth Low Energy
Bluetooth audio specifications: supports SBC, AAC, aptX HD, LDAC, aptX, LHDC
*LHDC needs to be used with OPPO Enco X series and OnePlus Buds Pro series headphones.
Navigation: built-in GPS, supports A-GPS, Beidou, GLONASS, GALILEO, QZSS
NFC: Multifunctional NFC
NFC function: supports reading and writing NFC cards (13.56MHz NFC cards), supports HCE, supports eSE (supports 300+ city subway bus rides, supports OnePlus Pay, access control cards, car keys and many other functions. One touch, convenient Pass, secure payment.)

VoLTE: supported
VoWiFi: Not supported
Video call: supported
Audio Stereo dual speakers
Dual microphone
Support Dolby Atmos
Sensor Fingerprint unlocking, G-sensor, electronic compass, gyroscope, rear color temperature sensor, proximity sensor, Qualcomm Sensor Core, supports SAR function, customized X-axis vibration motor, infrared remote control
Material Screen protection glass: Asahi Glass AGC
Middle frame: injection molded alloy
Back material: Corning® Gorilla® Glass 5
Interface USB connector Type:USB C
Supports standard USB C headphones
USB version: USB 2.0
SIM card: Dual Nano SIM
Operating system ColorOS 13.0 is based on Android 13

Additional information

Weight 1.5 kg
Brand: No selection

Color: No selection


Storage: No selection

, ,

  • Orders are processed upon receipt of payment, processing time typically takes 1 to 2 business days.
  • Shipping fees vary by product, weight, dimension, shipping destination, and shipping option.
  • All shipping fees are transparent and clearly shown during checkout. Remote areas may require extra charges, which will be indicated during checkout.
  • To get full details, kindly access to:
