Transcend Potential

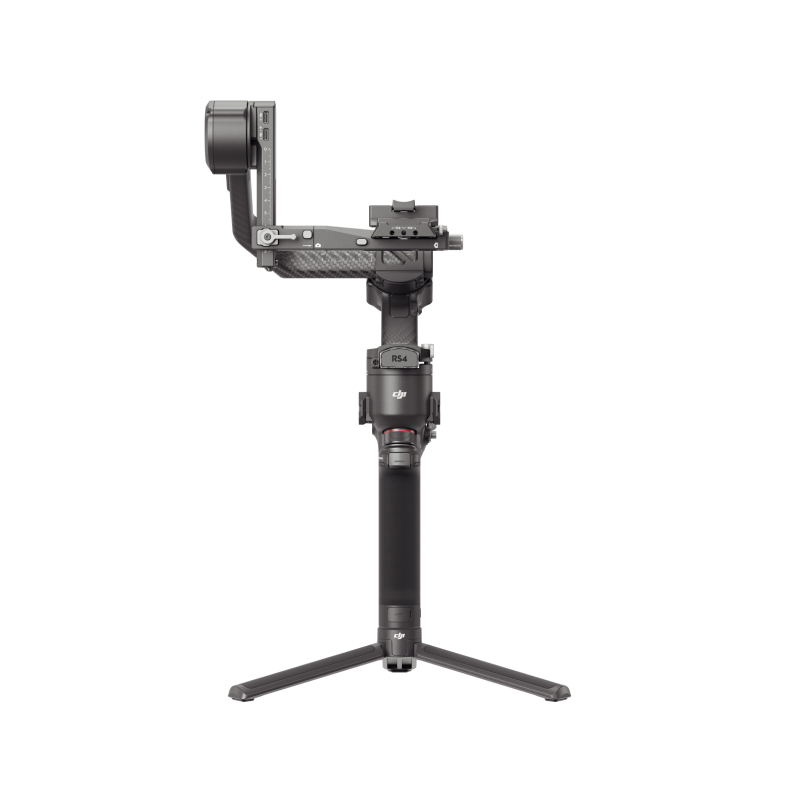

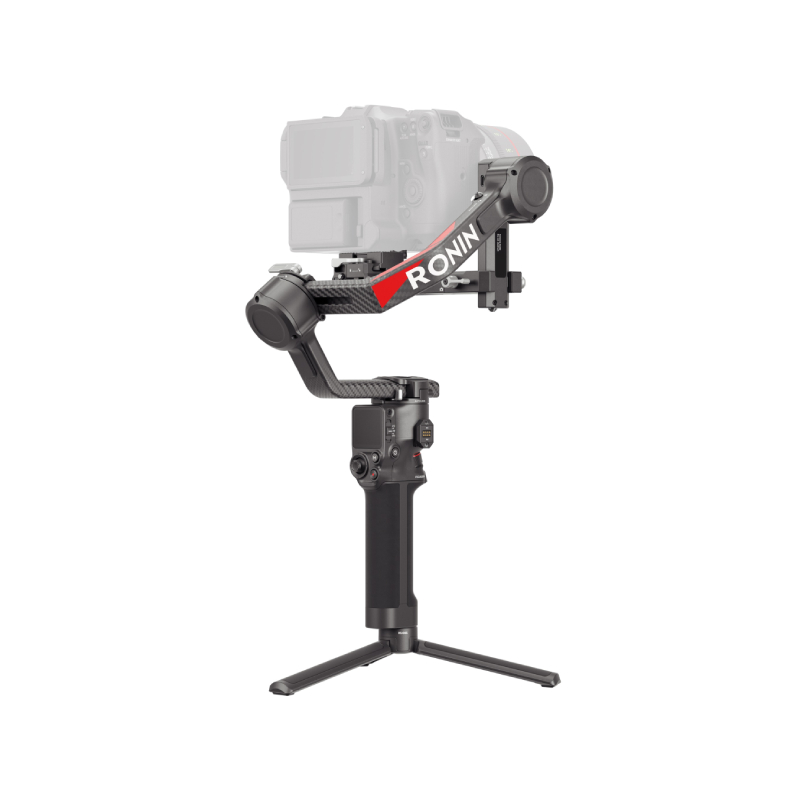

The DJI RS 4 Pro expansive flagship stabilizer integrates seamlessly with the DJI Focus Pro lens control system, DJI Transmission, and an extensive control ecosystem.
This synergy empowers the film and television industry with a full-scale production solution that unites stabilization, transmission, monitoring, focusing, and control.
It broadens the horizons of creative possibilities, enabling cinematographers to harness their full potential and showcase their skills.
Highlights
- Powerful Payload
- 2nd-Gen Native Vertical Shooting
- Smooth Balancing
- Automatic Screen Lock
- 2nd-Gen Automated Axis Locks
Specs
| Peripheral | |
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4″-20 Mounting Hole Cold Shoe Video Transmission/LiDAR Range Finder Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery | Model: BG30-1950mAh-15.4V Type: LiPo 4S Capacity: 1950 mAh Energy: 30 Wh Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance | |
| Tested Payload | 4.5 kg (10 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Mechanical & Electrical Properties | |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs) Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs) Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs) |
| Dimensions | Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| DJI Ronin Image Transmitter | |
| Connections | Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) |
| Expansion Port | Cold Shoe |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Weight | 126 g (0.27 lbs) |
| Dimensions | 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Battery | Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE)Measured in an unobstructed environment free of interference. |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
