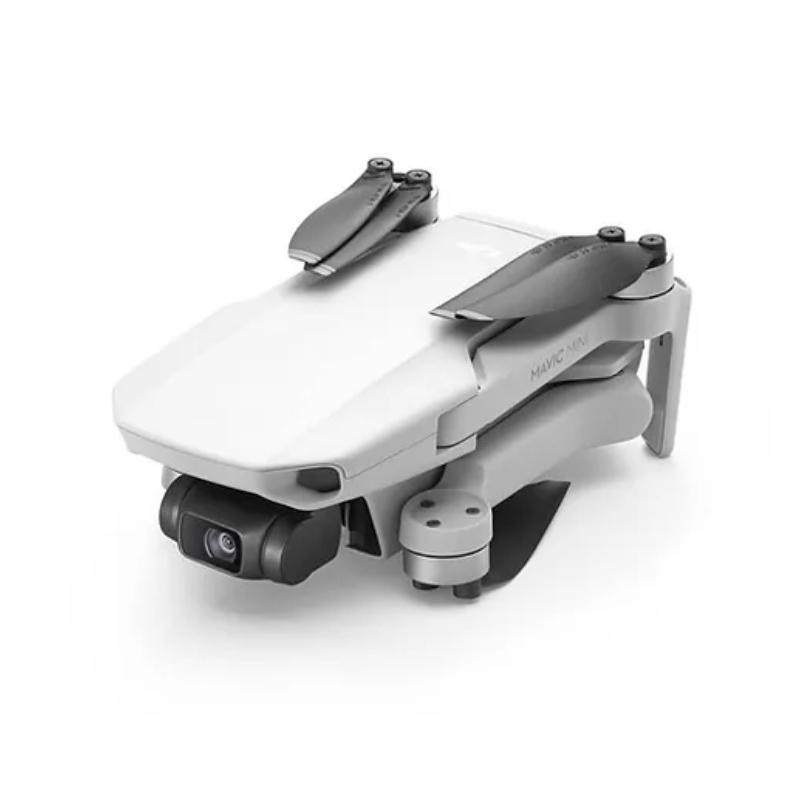

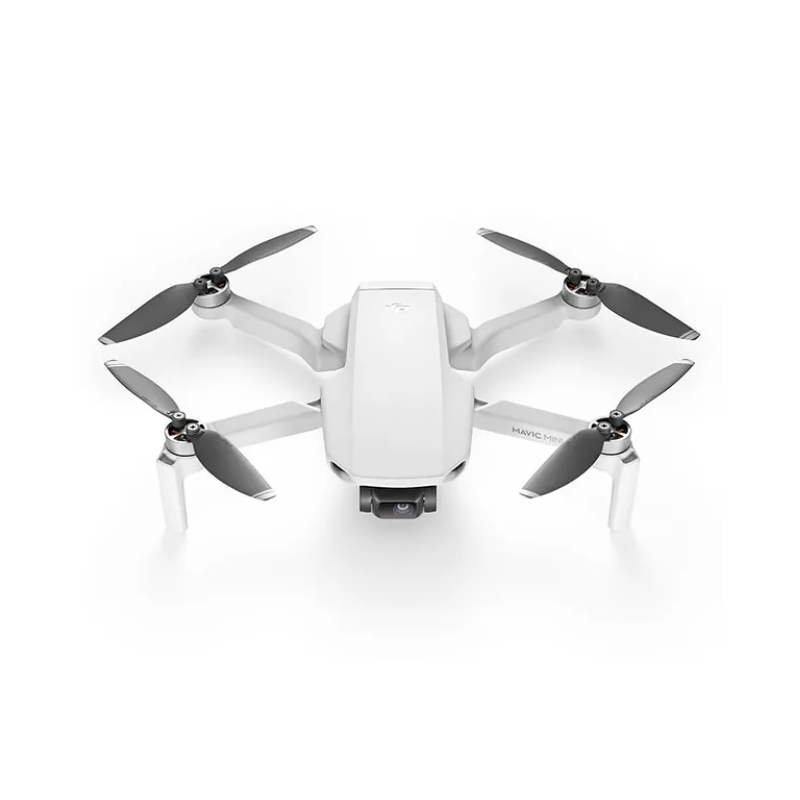

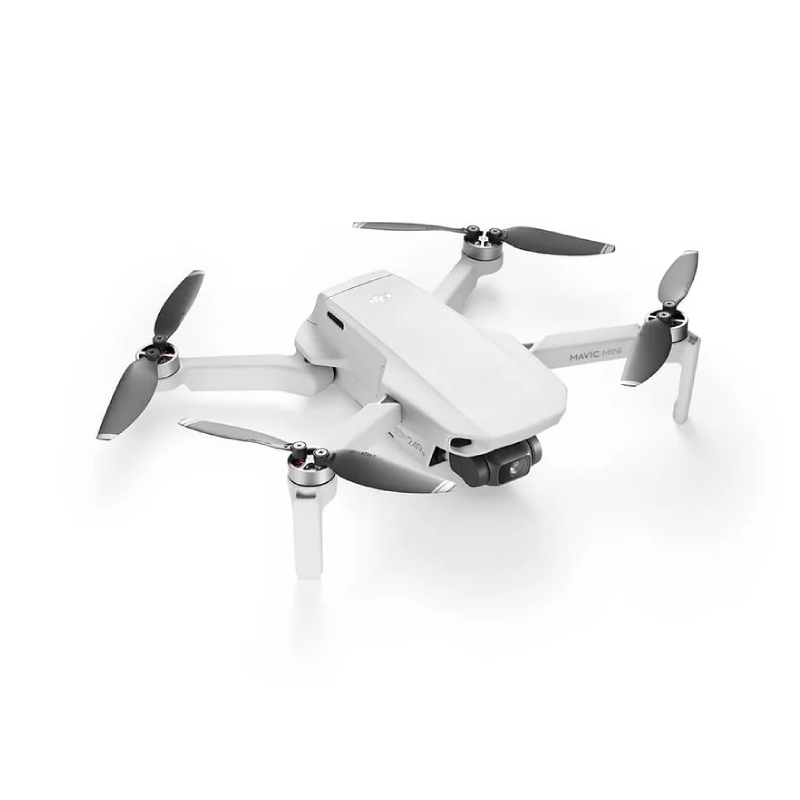

The Everyday FlyCam
Highlights
- Portable and Safe
- An Optimal Flight Experience
- Quality Content Captured with Ease
- Advanced Features Created to Inspire
- Get Creative with New Accessories
Specs
| Aircraft | Takeoff Weight 249 g Dimensions Folded: 140×81×57 mm (L×W×H) Unfolded: 159×202×55 mm (L×W×H) Unfolded (with propellers): 245×289×55 mm (L×W×H) Diagonal Distance 213 mm Max Ascent Speed 4 m/s (S Mode) 2 m/s (P Mode) 1.5 m/s (C Mode) Max Descent Speed 3 m/s (S Mode) 1.8 m/s (P Mode) 1 m/s (C Mode) Max Speed (near sea level, no wind) 13 m/s (S Mode) 8 m/s (P Mode) 4 m/s (C Mode) Maximum Takeoff Altitude 3000 m Max Flight Time 30 minutes (measured while flying at 14 kph in windless conditions) Max Wind Speed Resistance 8 m/s (Scale 4) Max Pitch Angle 30° (S Mode) 20° (P Mode) 20° (C Mode) Max Angular Velocity 150°/s (S Mode) 130°/s (P Mode) 30°/s (C Mode) Operating Temperature Range 0° to 40°C (32° to 104°F) Operating Frequency Model MT1SS5: 5.725-5.850 GHz Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz Transmission Power (EIRP) Model MT1SS5 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC) Model MT1SD25 2.4 GHz: <19 dBm (MIC/CE) 5.8 GHz: <14 dBm (CE) GNSSGPS+GLONASS Hovering Accuracy Range Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning) |
| Gimbal | Mechanical Range Tilt: -110° to 35° Roll: -35° to 35° Pan: -20° to 20° Controllable Range Tilt: -90° to 0° (default setting) -90° to +20° (extended) Stabilization 3-axis (tilt, roll, pan) Max Control Speed (tilt) 120°/s Angular Vibration Range ±0.01° |
| Sensing System | Downward Operating Range: 0.5-10 m Operating Environment Non-reflective, discernable surfaces Diffuse reflectivity (>20%) Adequate lighting (lux>15) |
| Camera | Sensor 1/2.3” CMOS Effective Pixels: 12 MP Lens FOV: 83° 35 mm Format Equivalent: 24 mm Aperture: f/2.8 Shooting Range: 1 m to ∞ ISO Range Video: 100-3200 (Auto) 100-3200 (Manual) Photo: 100-1600 (Auto) 100-3200 (Manual) Shutter Speed Electronic Shutter: 4-1/8000s Still Image Size 4:3: 4000×3000 16:9: 4000×2250 Still Photography Modes Single shot Interval: 2/3/5/7/10/15/20/30/60 s Video Resolution 2.7K：2720×1530 24/25/30 p FHD：1920×1080 24/25/30/48/50/60 p Max Video Bitrate 40 Mbps Supported File System FAT32（≤32 GB） exFAT（>32 GB） Photo Format JPEG Video Format MP4 (H.264/MPEG-4 AVC） |
| Remote Controller & Video Transmission | Operating Frequency Model MR1SS5: 5.725-5.850 GHz Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz Max Transmission Distance (unobstructed, free of interference) Model MR1SS5 5.8 GHz: 4000 m (FCC); 2500 m (SRRC) Model MR1SD25 2.4 GHz: 2000 m (MIC/CE) 5.8 GHz: 500 m (CE) Operating Temperature Range 0° to 40°C (32° to 104°F) Transmission Power (EIRP) Model MR1SS5 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC) Model MR1SD25 2.4 GHz: <19 dBm (MIC/CE) 5.8 GHz: <14 dBm (CE) Battery Capacity 2600 mAh Operating Current/Voltage 1200 mA 3.6 V (Android) 450 mA 3.6 V (iOS) Supported Mobile Device Size Max length: 160 mm Max thickness: 6.5-8.5 mm Supported USB Port Types Lightning, Micro USB (Type-B), USB Type-C Video Transmission System Enhanced Wi-Fi Live View Quality 720p/30fps Max. Bitrate 4 Mbps Latency (depending on environmental conditions and mobile device) 170-240 ms |
| Charger | Input 100-240 V, 50/60 Hz, 0.5A Output 12V 1.5 A / 9V 2A / 5V 3A Rated Power 18 W |
| Intelligent Flight Battery | Capacity 2400 mAh Voltage 7.2 V Max Charging Voltage 8.4 V Battery Type Li-ion 2S Energy 17.28 Wh Net Weight 100 g Charging Temperature Range 5° to 40°C (41° to 104°F) Max Charging Power 24 W |
| Intelligent Flight Battery (1100 mAh) | Capacity 1100 mAh Voltage 7.6 V Max Charging Voltage 8.7 V Battery Type LiPo 2S Energy 8.36 Wh Net Weight 50 g Charging Temperature Range 5° to 40°C (41° to 104°F) Max Charging Power 18 W |
| APP | Name DJI Fly Required Operating System iOS v10.0 or later Android v6.0 or later |
| Supported SD Cards | Supported SD Cards UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below. Recommended microSD Cards 16 GB: SanDisk Extreme, Lexar 633x 32 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial, Sandisk Extreme V30 A1, SanDisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme Pro V30 A2, Lexar 633x, Lexar 667x 64 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1 128 GB: Samsung Evo Plus, SanDisk Extreme V30 A2, SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1 256 GB: SanDisk Extreme V30 A2 |
| Footnotes | 1. Aircraft takeoff weight (includes battery, propellers, and a microSD card). Registration not required in some countries and regions. Check local rules and regulations before use.These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended. 2. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time. |
