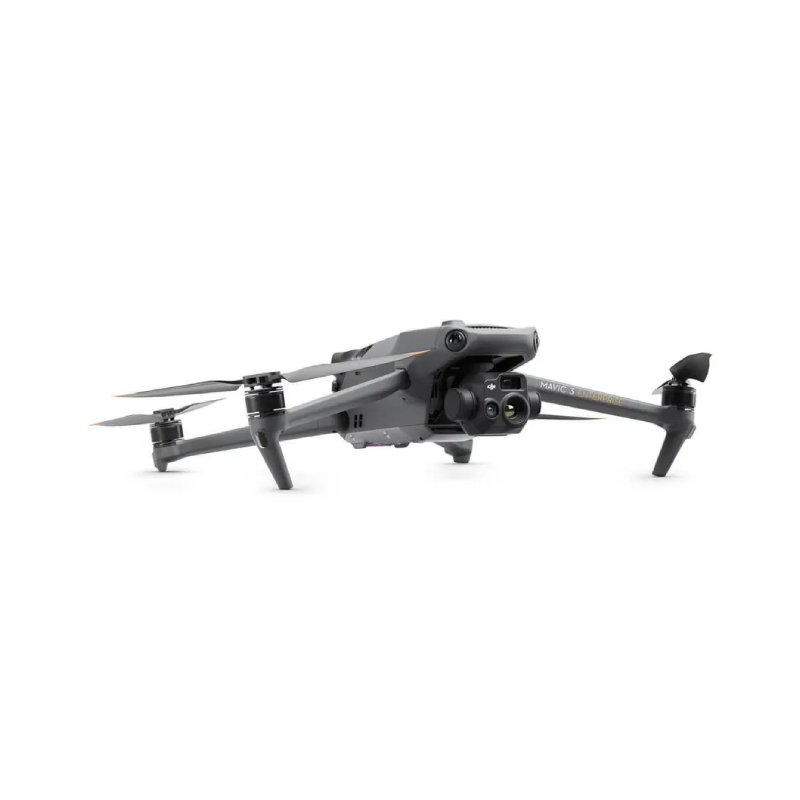

Your Everyday Commercial Drone

The Mavic 3 Enterprise Series redefines industry standards for small commercial drones. The Mavic 3T, a thermal version is available for firefighting, search and rescue, inspection, and night operations.

Highlights

• Lightweight and Portable
• Omnidirectional Sensing
• Powerful Payloads
• Thermal camera with 640 × 512 resolution.
• Supports point and area temperature measurement.
• High temperature alerts, color palettes, and isotherms.
• Thermal and zoom cameras support 28× continuous side-by-side zoom for easy comparisons.

Specs

Aircraft

Weight (with propellers, without accessories)	DJI Mavic 3T: 920 g
Max Takeoff Weight	DJI Mavic 3T: 1,050 g
Dimensions	Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance	380.1 mm
Speed	Max Ascent Speed 6 m/s (Normal Mode) 8 m/s (Sport Mode) Max Descent Speed 6 m/s (Normal Mode) 6 m/s (Sport Mode) Max Flight Speed (at sea level, no wind) 15 m/s (Normal Mode) Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
Max Wind Speed Resistance	12 m/s
Max Take-off Altitude Above Sea Level	6000 m (without payload)
Max Flight Time (no wind)	45 mins
Max Hover Time (no wind)	38 mins
Max Flight Distance	32 km
Max Pitch Angle	30° (Normal Mode) 35° (Sport Mode)
Max Angular Velocity	200°/s
GNSS	GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering Accuracy	Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range	-10° to 40° C (14° to 104° F)
Propeller Model	9453F Propellers for Enterprise
Internal Storage	N/A
Motor Model	2008
Beacon	Built into the aircraft

Thermal Camera

Thermal Imager	Uncooled VOx Microbolometer
Pixel Pitch	12 μm
Frame Rate	30 Hz
Lens	DFOV: 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞
Noise Equivalent Temperature Difference (NETD)	≤50 mK@F1.0
Temperature Measurement Method	Spot Meter, Area Measurement
Temperature Measurement Range	-20° to 150° C (-4° to 302° F, High Gain Mode) 0° to 500° C (32° to 932° F, Low Gain Mode)
Palette	White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format	JPEG (8-bit) R-JPEG (16-bit)
Video Resolution	640×512@30fps
Bitrate	6 Mbps
Video Format	MP4 (MPEG-4 AVC/H.264)
Still Photography Modes	DJI Mavic 3T: Single: 640×512 Timed: 640×512 JPEG: 2/3/5/7/10/15/20/30/60 s
Digital Zoom	28x
Infrared Wavelength	8-14 μm
Infrared Temperature Measurement Accuracy	±2° C or ±2% (using the larger value)

Wide Camera

Sensor	DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
Lens	DJI Mavic 3T: FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8 Focus: 1 m to ∞
ISO Range	DJI Mavic 3T: 100-25600
Shutter Speed	DJI Mavic 3T: Electronic Shutter: 8-1/8000 s
Max Image Size	DJI Mavic 3T: 8000×6000
Still Photography Modes	DJI Mavic 3T: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 2/3/5/7/10/15/20/30/60 s* Panorama: 12 MP (raw image); 100 MP (stitched image) *Shooting 48MP photo does not support 2s interval Smart Low-light Shooting: 12 MP
Video Resolution	H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps
Bitrate	DJI Mavic 3T: 4K: 85 Mbps FHD: 30 Mbps
Supported File Formats	exFAT
Photo Format	DJI Mavic 3T: JPEG
Video Format	MP4 (MPEG-4 AVC/H.264)

Battery

Capacity	5000 mAh
Standard Voltage	15.4 V
Max Charging Voltage	17.6 V
Type	LiPo 4S
Chemical System	LiCoO2
Energy	77 Wh
Weight	335.5 g
Charging Temperature	5° to 40° C (41° to 104° F)

Charger

Input	100-240 V (AC Power), 50-60 Hz, 2.5 A
Output Power	100 W
Output	Max. 100 W (total) When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.

Charging Hub

Input	USB-C: 5-20 V, 5.0 A
Output	Battery Port: 12-17.6 V, 8.0 A
Rated Power	100 W
Charging Type	Three batteries charged in sequence
Charging Temperature Range	5° to 40° C (41° to 104° F)
