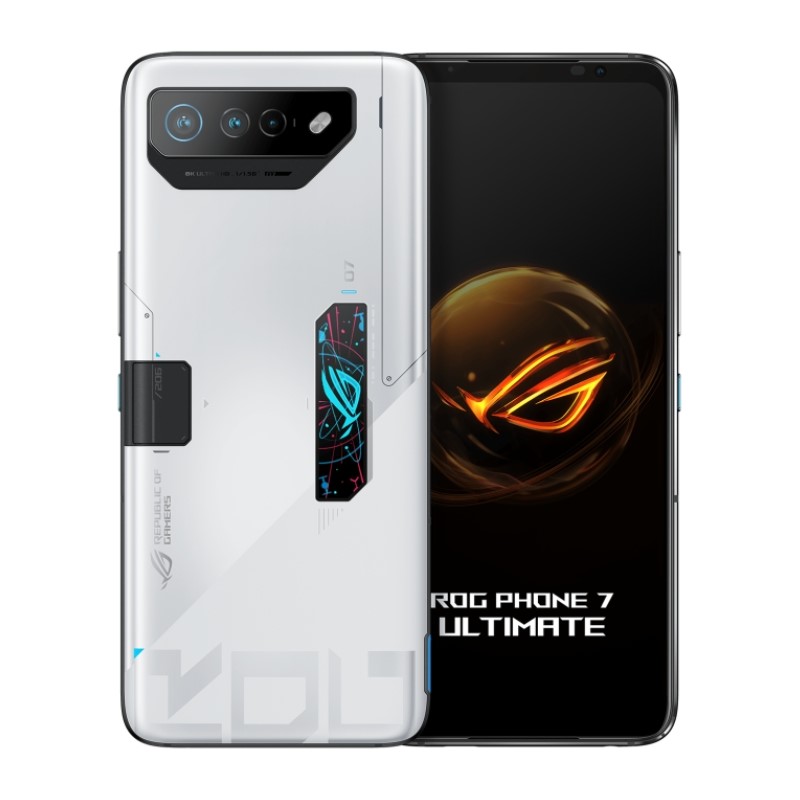

Get ready to meet the gaming phone of your dreams! The ROG Phone 7 Ultimate packs the game-winning power of the latest Snapdragon® 8 Gen 2 Mobile Platform with ray-tracing hardware acceleration into an all-new futuristic two-tone design, along with the unique ROG Vision matrix display. An upgraded GameCool 7 thermal design — featuring the innovative AeroActive Portal — keeps everything super-cool even when you’re maxing out the performance, and the AeroActive Cooler 7 doubles up as a subwoofer to give you a portable 2.1 sound system. We’ve also double the brightness of the 165 Hz Samsung AMOLED screen for better outdoor use, and you can still enjoy all your favorite features such as the unique AirTrigger controls and monster 6000 mAh¹ battery. The ROG Phone 7 Ultimate doesn’t compromise — and neither should you.
Tech Specs
Design
Storm White
Weight and Dimension
246g
IP54
Operating System
Android 13
Processor
Qualcomm Snapdragon® 8 Gen 2, SM8550, Qcta-core CPUs,3.2 Ghz
Qualcomm Adreno 740
Memory
LPDDR5X 16GB
Storage
UFS4.0 512GB
Display
6.78″ 20.4:9 (2448 x 1080) Samsung AMOLED. Corning® Gorilla® Glass Victus. Delta-E < 1
Rear Camera
Main Rear Camera: Sony® flagship IMX766 50 MP image sensor – 1/1.56” large sensor size, 1 µm pixel size. F1.9 aperture, 23.8mm equivalent focal length in 35mm film camera Second Rear Camera: 13 MP, Ultrawide-angle camera, 12.5mm equivalent focal length in 35mm film camera Third Rear Camera: 5 MP, Macro
Front Camera
32 MP (Uses pixel binning to output 8MP image) 29.4mm equivalent focal length in 35mm film camera
Audio
Speaker: Symmetrical dual front-facing speakers with Dirac HD Sound 5-magnet stereo speaker with Cirrus Logic amplifier for louder, deeper and less distorted sound effect Audio Output: Hi-Res Audio up to 384 kHz / 32-bit for 3.5mm output Qualcomm WCD9385 for Hi-Res output AudioWizard with multiple listening profiles Dirac Virtuo for Headphone™ Spatial Sound Microphone: Tri-microphones with ASUS Noise Reduction Technology
Video Recording
8K UHD (7680 x 4320) video at 24 fps for main rear camera 4K UHD (3840 x 2160) video at 30 / 60 fps for main rear camera, at 30 fps for second rear camera 1080p FHD video recording at 30 / 60 fps 720p HD video recording at 30 / 60 fps 3-axis electronic image stabilization for rear cameras Time Lapse (4K UHD video) Slow Motion video (4K at 120 fps; 1080p at 240 / 120 fps; 720p at 480 fps) Take still photo while recording video
Wireless Technology
(802.11 be/ax/ac/a/b/g/n, 2×2 MIMO) Supports 2.4GHz/ 5GHz/ 6GHz WiFi Bluetooth® 5.3 (HFP + A2DP + AVRCP + HID + PAN + OPP), supports Qualcomm® aptX™ Adaptive and aptX™ Lossless Wi-Fi Direct NFC *WiFi 7 availability and features are dependent on regulatory limitations.
Navigation
GNSS support GPS (L1/L5), Glonass (L1), Galileo (E1/E5a), BeiDou(B1i/B1c/B2a), QZSS (L1/L5) and NavIC
SIM Cards
Dual slots: Dual-SIM / Dual-Standby support Slot 1: 5G/4G/3G/2G Nano SIM card Slot 2: 5G/4G/3G/2G Nano SIM card * 5G services are only supported in 5G network-enabled locations in 5G-ready countries.
Network Standard
* ASUS phone 5G/4G band compatibility varies by region, please check compatibility with local carriers. WW version: GSM/GPRS/EDGE; WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA Support EN-DC/NRCA(6DL+FR1, 2FR1) FR1: DL up to 4.92 Gbps / UL 0.9 Gbp LTE: DL 7CA Cat20 up to 2.0Gbps / UL 2CA Cat18 up to 211 Mbps Gigabit LTE DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps 4×4 MIMO “5G SA & NSA: SA & NSA: N1, N2, N3, N5, N7, N8, N12, N18, N20, N25, N26, N28, N38, N40, N41, N48, N66, N77, N78, N79 FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 32(1500), 66 (1700/2100) TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500),42(3500), 43, 48(3600) WCDMA: HSDPA 800 (19)/ 850(5/6) / 900(8) / 1700(4) / 1900 (2) / 2100 (1) EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) Supported 4×4 MIMO | HPUE US version: GSM/GPRS/EDGE; WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA Support EN-DC/NRCA(5DL+FR1, 2FR1) FR1: DL up to 4.93 Gbps / UL 0.9 Gbp LTE: DL 7CA Cat20 up to 2.0Gbps / UL 2CA Cat18 up to 211 Mbps Gigabit LTE DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps 4×4 MIMO “SA & NSA: N1, N2, N3, N5, N7, N8, N12, N18, N20, N25, N26, N29, N30, N38, N40, N41, N48, N66, N71, N77, N78, N79 FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 29 (700), 30(2300), 32(1500), 66(1700/2100), 71(600) TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500),42(3500), 43(3700), 48(3600) WCDMA Bands: HSDPA 800 (19)/ 850(5/6) / 900(8) / 1700(4) / 1900 (2) / 2100 (1) EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) Supported 4×4 MIMO | HPUE” CN version: GSM/GPRS/EDGE; CDMA/ WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA Support EN-DC/NRCA(4DL+FR1, 3FR1) FR1: DL up to 4.93 Gbps / UL 0.9 Gbps LTE: DL 6CA Cat20 up to 1.4Gbps / UL 2CA Cat18 up to 211 Mbps Gigabit LTE DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps 4×4 MIMO “SA-only: N1/N3/N5/N8/N28a SA & NSA: N41/N77/N78/N79 FDD-LTE band: 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900),18(800),19(800),26(850), B28a(700) TD-LTE Bands: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 48(3600) CDMA Bands: Support (BC0 800MHz) (No support CDMA2000 EVDO) WCDMA Bands: HSDPA 800 (19)/ 900(8)/ 850(5/6) / 1700(4) / 1900(2) / 2100(1) EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) Supported 4×4 MIMO | HPUE”
Sensor
In-display fingerprint sensor, face recognition, accelerometer, e-compass, gyroscope, proximity sensor, ambient-light sensor, ultrasonic sensors for AirTrigger and grip press
Battery
Equivalent 6000 mAh (typical) high-capacity battery, supports Quick Charge 5.0 and PD Charging
Power Adapter
USB power adapter (65-Watt) Output: 3.3-21V 3.25A, supports up to 65W QC5.0 / PD 3.0 / Direct Charge adapter
In the Box
AeroActive Cooler 7
USB power adapter (65-Watt) / 30-watt in India USB-C to USB-C cable Aero Case Ejector pin (SIM tray needle) Documentation (user guide, warranty card)
