Pro Vision Gaming
Highlights
- New Epic Look
- ICE 8.0 Multi-Dimensional Cooling System
- Air Channel 20,000RPM* High-speed Turbo Fan
- Fast Forward Gaming
Specs

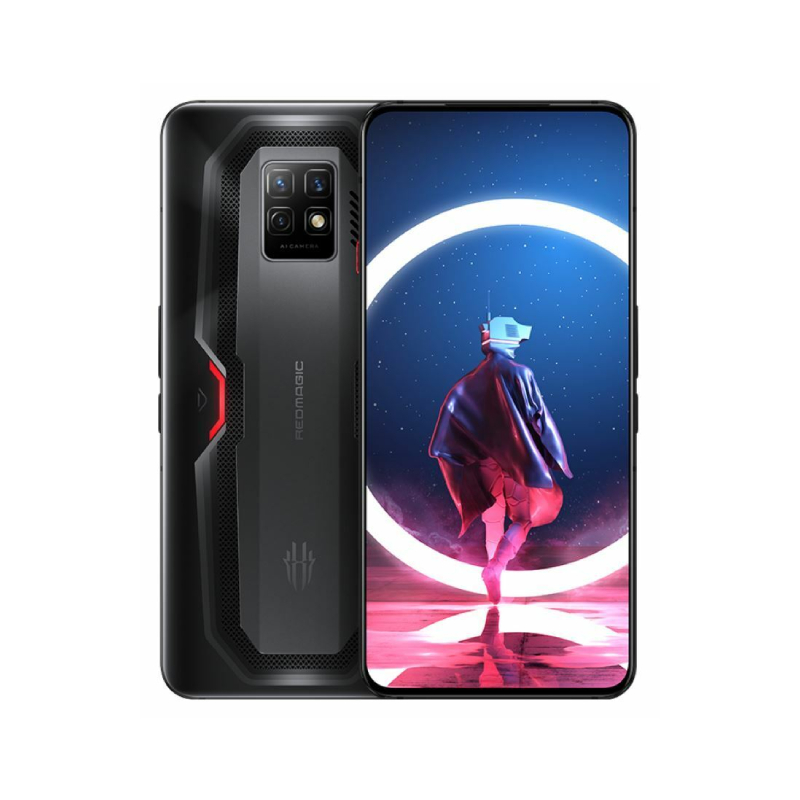

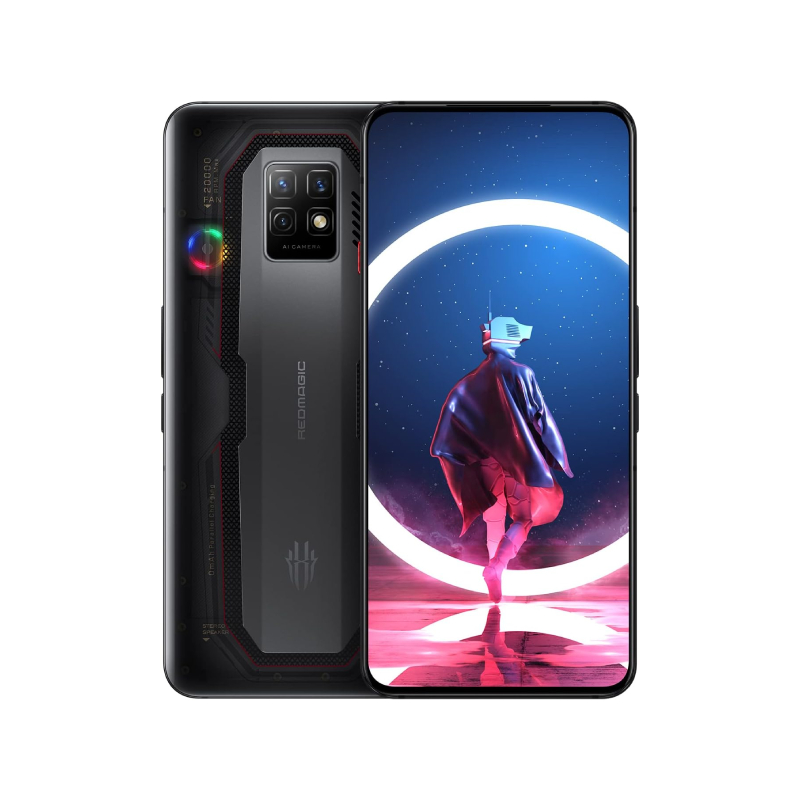

| Basic Parameters | Height: 166.27mm Width: 77.1mm Depth: 9..98mm Weight: 235g Material: Double-sided glass + metal box / metal box + glass / metal synthetic rear cover Color: Obsidian 16+256 / Supernova 16+512 |
| Display | Size: 6.8 inches FHD+ Refresh Rate: up to 120Hz Touch Sampling Rate: up to 960Hz multi-touch Resolution: 1080×2400 pixels Aspect Ratio: 20:9 Type: AMOLED Brightness: 600 nits max brightness, SGS Certification low blue light for eye comfort Material: Corning® Gorilla® Glass 5 Color Gamut: 100% DCI-P3 Contrast Ratio: 1,000,000:1 |
| Cooling Fans | Turbo Fan Air Channel with 2 air intakes Air Volume: 0.35 (MIN. 0.28) CFM；11.75 (MIN. 7.52 ) mmH2O Type: Centrifugal fan Number of fan blades: 59 Thickness of fan blades: 0.1mm Tested life: 30,000 hours Speed: 20,000 RPM The other cooling components Material: Aircraft grade aluminum alloy Vapor Chamber High Thermal Conductivity Copper Foil Thermal gel Cooling Graphite Thermal Pad Aviation Grade Aluminum Heat Sink |
| Hardware | Qualcomm® Snapdragon™ 8 Gen 1 CPU Cores: Kryo™ CPU Clock Speed: up to 3.0 GHz GPU: Adreno™ Red Core 1 |
| Capacity* | RAM: 16 GB LPDDR5 ROM: 256/512 GB UFS3.1 *Actual memory space is less and varies due to many factors |
| Connectivity | Network SIM: dual nano-SIM SA+NSA: compatible with both standalone and non-standalone modes 2G: GSM 2/3/5/8 3G: WCDMA B1/B2/B4/B5/B8 CDMA/EVDO BC0/BC1 4G: TD-LTE B34/B38/B40/B41 FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/ B18/B19/B20/B26/B28A/B66 5G: NSA: n41/n78//n77/n38 SA: n41/n78/n1/n77 (3600M-4100M) /n28A/n3/n7/n8/n20/n5 WiFi: WiFi6 802.11ax ready 2×2 802.11ac MU-MIMO with DBS support Bluetooth: Bluetooth 5.2 and Bluetooth Milan compliant BLE long range Positioning: GPS, GLONASS NFC: Yes HDMI: Yes |
| Cameras | Rear Camera Sensors: S5KGW3+HI846+OV02A10 Resolution: 64MP+8MP+2MP Wide Angle: 82°+120°+78° Aperture: F1.79+F2.2+F2.4 Frame Rates and Resolution: 7680×4320@30fps,3840×2160@30fps, 3840×2160@60fps,1920×1080@30fps, 1920×1080@60fps,1280×720@30fps Time-Lapse: Yes Front Camera Megapixels: 16MP Pixel Size: 1.12μm Aperture: 2.0 Video shooting: the rear cameras supports 8K resolution at 30fps, 4K at 60fps/30fps, 1080P at 60fps/30fps, 720P at 30fps; the front camera supports 1080P/720P at 30fps |
| Sensors | Fingerprint, G-sensor, Electronic Compass, Gyroscope, Proximity, Ambient Light Sensor, Sensor hub |
| Operating System | RedMagic OS 5.0 based on Android 12.0 |
| Ports | USB Type-C 3.0, USB On-The-Go; accessory connector |
| Battery & Quick Charging | Battery: 5000mAh Dual Cell Battery Quick Charging: Supports 65W (65W GaN quick charger in the box) |
| Audio Supported Formats | Playback: WAV, AAC, MP3, AMR, FLAC, OGG, APE Recording: WAV, AAC, AMR |
| Video Supported Formats | Playback: 3GP, ASF, AVI, FLV, M2TS, MKV, MOV, MP4, MPG, MTS, TS, WEBM, WMV, MPEG, M4V Recording: MP4 |
| Image Supported Formats | Playback: JPEG, PNG, GIF, BMP, WBMP, HEIC Output: JPEG |
| Special Functions | Shoulder Trigger Buttons: 500Hz touch sampling rate touchpads Game Space Switch: Toggles special game mode on or off. RGB Light: fully customizable lighting effects |
