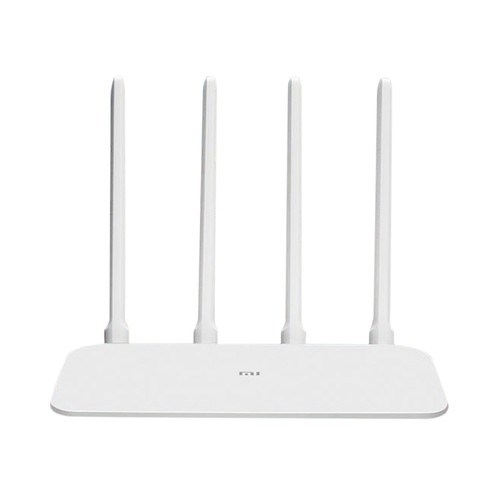

High-Speed Dual Band AC1200 Router
Highlights
- 4 external antennas
- Large 64 MB memory for stable connection of 64 devices*
- Control remotely via app
- Unauthorized access prevention
- Parental Control
Specs
| Specifications | Dimensions 188 mm x 100.5 mm x 175 mm Product color White Processor MT7628DA ROM 16MB Internal memory 64MB 2.4GHz Wi-Fi 2×2 (supports the IEEE 802.11n protocol, maximum possible speed of 300Mbps) 5GHz Wi-Fi 2×2 (supports the IEEE 802.11ac protocol, maximum possible speed of 867Mbps) Product antennas 4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi) Product heat dissipation Natural heat dissipation Total interfaces Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX) One 10/100M self-adaptive WAN port (Auto MDI/MDIX) LED indicator lights 2 System reset buttons 1 Power input interface 1 Protocol standards IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u Certification standards GB9254-2008 YD/T993-1998 GB4943.1-2011 |
| Wireless Specification | Dual band 2.4GHz and 5GHz Modulation 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 2 streams) |
| Wifi Transmission Power | CE EIRP： <20dBm(2.4GHz) <23dBm(5GHz) |
| Software Specifications | Operating system Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT Wireless security WPA-PSK/WPA-PSK2 encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention Management Application Supports web, Android, and iOS |
| Operating Environment | Operating temperature 0–40°C0–40°C Operating humidity 10%–90% RH (no condensation) Storage temperature -40–70°C Storage humidity 5%–90% RH (no condensation) |
