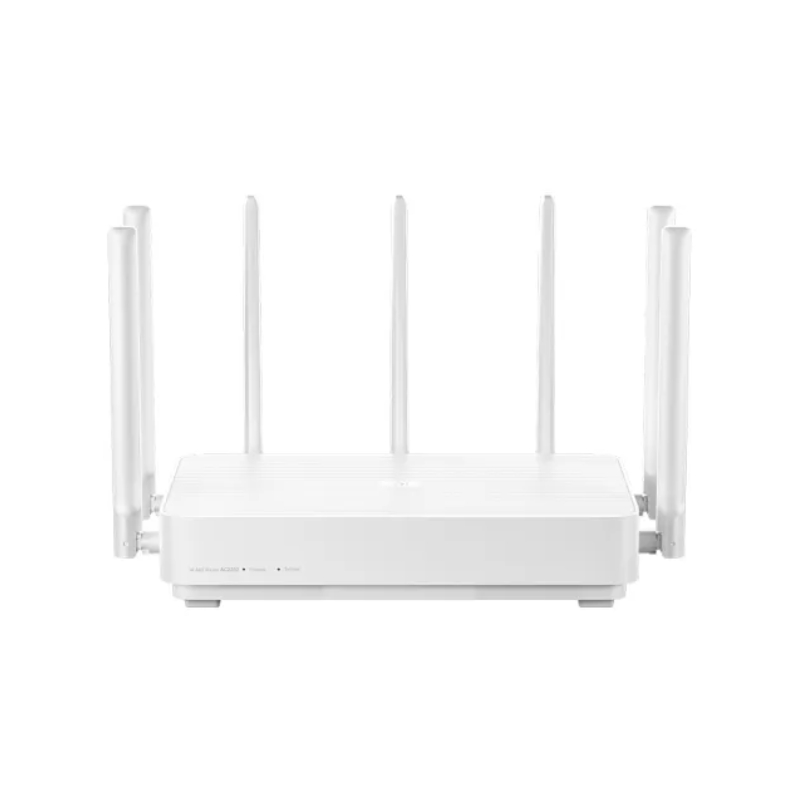

Smart Gigabit Router
Highlights
- Wireless speeds of up to 2183 Mbps
- Qualcomm chip
- 7 independent signal amplifiers
- AIoT Dedicated Antenna
- 128 MB RAM
- Supports MU-MIMO*
Specs
| Hardware configuration | Product name Mi AIoT Router AC2350 Processor QCA9563 Internal memory 128 MB 2.4 GHz WiFi 3×3 (supports the IEEE 802.11n protocol, maximum speed of 450 Mbps) 5 GHz WiFi 4×4 (supports the IEEE 802. 11ac protocol, maximum speed of 1733 Mbps) Antennas 7 external high-gain antennas + 1 internal AIoT antenna System reset buttons 1 Power input port 1 Heat dissipation Natural heat dissipation Total ports 1× 10/100/1000 Mbps self-adaptive WAN port (Auto MDI/MDIX) 3× 10/100/1000 Mbps self-adaptive LAN ports (Auto MDI/MDIX) LED indicator lights 2 (System indicator light ×1, Internet indicator light ×1) Protocol standards IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u/3ab |
| Wireless specifications | Dual band 2.4 GHz and 5 GHz Modulation 11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps) 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS23 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams) |
| Software specifications | Operating system MiWiFi ROM intelligent router operating system based on a highly customized version of OpenWRT Wireless security WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention Management application Supports web, Android, and iOS |
| Product accessories | User manual 1 Product power supply 1× (12V/1.5A) |
| Working environment | Operating temperature 0°C–40°C Operating humidity 10%–90% RH (no condensation) Storage temperature -40°C–70°C Storage humidity 5%–90% RH (no condensation) |
