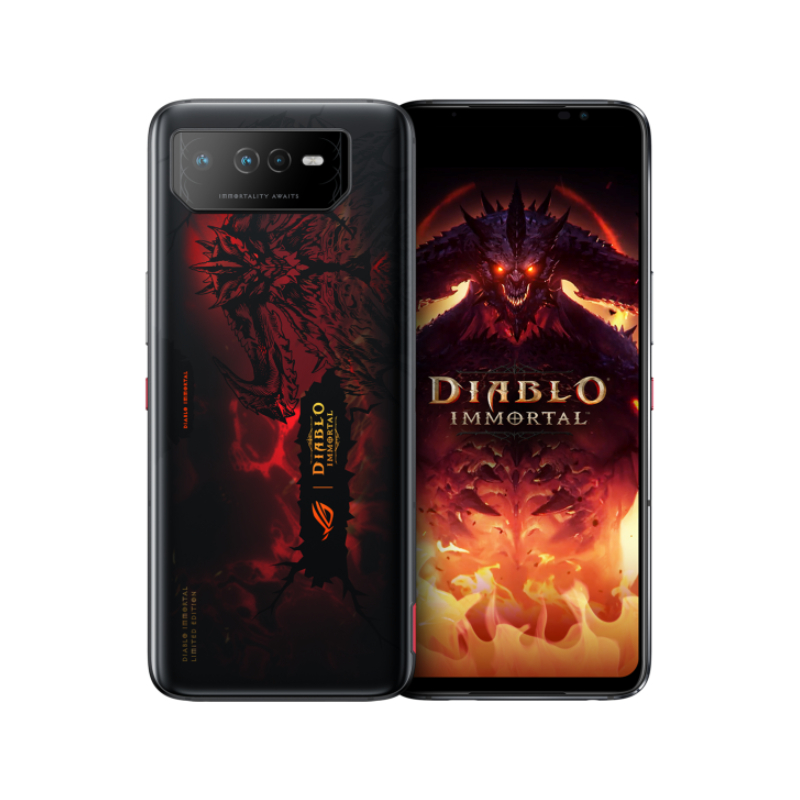

In collaboration with Blizzard Entertainment, ROG proudly presents the ROG Phone 6 Diablo Immortal Edition. This limited-edition themed phone and matching accessories are your perfect companions for your quest through the mysterious and dangerous world of Diablo.
Specs
Design
Hellfire Red
Weight and Dimension
239g, 173 x 77x 10.4 mm
Processor
Qualcomm® Snapdragon® 8+ Gen 1 Mobile Platform
Qualcomm® Adreno™ 730
Memory
LPDDR5 16GB
Storage
UFS3.1 512GB
Display
6.78″ 20.4:9 (2448 x 1080) 165Hz / 1ms Samsung AMOLED. Corning® Gorilla® Glass Victus. Delta-E < 1
Rear Camera
Main Rear Camera: Sony® flagship IMX766 50 MP image sensor – 1/1.56” large sensor size, 1 µm pixel size. F1.9 aperture, 23.8mm equivalent focal length in 35mm film camera Second Rear Camera: 13 MP, Ultrawide-angle camera, 12.5mm equivalent focal length in 35mm film camera Third Rear Camera: 5 MP, Macro
Front Camera
12 MP. 27.5mm equivalent focal length in 35mm film camera
Audio
Speaker: Symmetrical dual front-facing speakers with Dirac HD Sound 5-magnet stereo speaker with Cirrus Logic amplifier for louder, deeper and less distorted sound effect Audio Output: Hi-Res Audio up to 384 kHz / 32-bit for 3.5mm output Qualcomm WCD9385 for Hi-Res output AudioWizard with multiple listening profiles Microphone: Tri-microphones with ASUS Noise Reduction Technology 3.5mm Headphone Jack
Video Recording
8K UHD (7680 x 4320) video at 24 fps for main rear camera 4K UHD (3840 x 2160) video at 30 / 60 fps for main rear camera, at 30 fps for second rear camera 1080p FHD video recording at 30 / 60 fps 720p HD video recording at 30 / 60 fps 3-axis electronic image stabilization for rear cameras HDR10+ video recording (4K UHD video) for main 50MP and ultra-wide 13MP camera Time Lapse (4K UHD video) Slow Motion video (4K at 120 fps; 1080p at 240 / 120 fps; 720p at 480 fps) Take still photo while recording video
Wireless Technology
Integrated WiFi 6E* (802.11a/b/g/n/ac/ax, 2×2 MIMO) Supports 2.4GHz/ 5GHz/ 6GHz WiFi Bluetooth® 5.2 (HFP + A2DP + AVRCP + HID + PAN + OPP), supports Qualcomm® aptX™ Adaptive and aptX™ Lossless Wi-Fi Direct NFC *WiFi 6E availability and features are dependent on regulatory limitations.
Navigation
GNSS support GPS (L1/L5), Glonass (L1), Galileo (E1/E5a), BeiDou(B1i/B1c/B2a), QZSS (L1/L5) and NavIC
SIM Cards
Dual slots: 5G*+5G or 4G dual-SIM / dual-standby support Slot 1: 5G/4G/3G/2G Nano SIM card Slot 2: 5G/4G/3G/2G Nano SIM card * 5G services are only supported in 5G network-enabled locations in 5G-ready countries.
Network Standard
* ASUS phone 5G/4G band compatibility varies by region, please check compatibility with local carriers.
A version:
GSM/GPRS/EDGE; WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA
Supports EN-DC (6DL+FR1, 3FR1)
FR1 (DL/UL): 4.9 Gbps/ 0.9 Gbps
LTE: DL 6CA Cat20 up to 2.0 Gbps / UL 2CA Cat18 up to 211 Mbps
Gigabit LTE
DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps
4×4 MIMO
5G SA & NSA: N1,N2,N3,N5,N7,N8,N12,N13,N18,N20,N25,N26,N28,N38,N40,N41,N48,N66,N71,N77,N78,N79)
FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800),25(1900), 26(850),28(700), 29(700),30(2300) 32(1500), 66(1700/2100), 71(600)
TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500),42(3500), 43, 48(3600)
WCDMA: 800 (19)/ 850(5/6) / 900(8) / 1700(4) / 1900 (2) / 2100 (1)
EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz)
Supported 4×4 MIMO | HPUE
B version:
GSM/GPRS/EDGE; WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA
Support EN-DC (4DL+FR1, 2FR1)
FR1 (DL/UL): 4.3 Gbps/ 0.9 Gbps
LTE: DL 5CA Cat16 up to 1.0 Gbps / UL 2CA Cat18 up to 211 Mbps
Gigabit LTE
DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps
4×4 MIMO
5G SA & NSA: N1,N3,N7,N8,N20,N28,N38,N40,N41,N77,N78,N79)
FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900),18(800),19(800), 20(800), 26(850), 28(700), 32(1500)
TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 48(3600)
WCDMA Bands: 900(8) / 850(5) /1700(4)/ 1900(2) / 2100(1)
EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz)
Supported 4×4 MIMO | HPUE
C version:
GSM/GPRS/EDGE; CDMA/WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA
Supports EN-DC (4DL+FR1, 2FR1)
FR1: DL up to 4.5 Gbps / UL 0.9 Gbps
LTE: DL 5CA Cat18 up to 1.2 Gbps / UL 2CA Cat18 up to 211 Mbps
Gigabit LTE
DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps
4×4 MIMO
5G SA-only: N1/N3/N5/N8/N28, SA & NSA: N41/N77/N78/N79
FDD-LTE band: 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900),18(800),19(800),26(850), 28(700)
TD-LTE Bands: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 48(3600)
CDMA Bands: Support (BC0 800MHz) (No support CDMA2000 EVDO)
WCDMA Bands: 800 (19)/ 900(8)/ 850(5/6) / 1700(4) / 1900(2) / 2100(1)
EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz)
Supported 4×4 MIMO | HPUE
Sensor
In-display fingerprint sensor, face recognition, accelerometer, e-compass, gyroscope, proximity sensor, ambient-light sensor, ultrasonic sensors for AirTrigger 6 and grip press
Battery
Equivalent 6000 mAh (typical) high-capacity battery, supports Quick Charge 5.0 and PD Charging
Power Adapter
USB power adapter (65-Watt) Output: 3.3-21V 3.25A, supports up to 65W QC5.0 / PD 3.0 / Direct Charge adapter
In the Box
Shield Blessing Aero Case Map of Sanctuary Fahir’s Light Immortality Ejector Pin (SIM tray needle) USB Power Adapter (65-Watt) USB-C to USB-C Cable Documentation (user guide, warranty card)
